Manual Hand Crank Telescopic Mast Portable Aluminum Winch Telescopic Pole
Features of OKAF Telescopic Antenna Mast
Material : Made of high strength aluminum alloy, hard anodized treatment makes the telescopic mast anti-corrosion and more stable.
Working principle: The system uses screw drive or wire rope drive. Its good self-locking performance achieving reliable self-locking in any position improves the safety of reliability.
Height : Telescopic mast height from 3 to 20 meter can be customized according to customer's requirements.
Lifting method : Manual winch telescopic tower. No need power supply. No need air compressor.
Application: Widely apply to vehicle mounted, ptz cameras, security cameras, ham radio, antennas, telecommunication tower,lighting,Lightning protection kit, TV antennas and emergency lights.
Accessories: Guy wires,Ground anchor tripod, wheel, hand crank and so on.

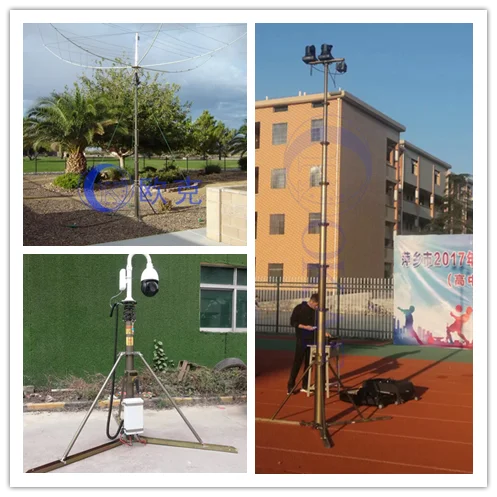

Applications
1. Radio installation Surveying
2. Temporary communications.
3. Emergency services (Light tower for fire fighting rescue)
4. Mobile surveillance ( PTZ camera for law forensics)
5. Semi-permanent Installations for outdoor Events(Military or patrol surveillance)
6. Construction site surveillance(construction sites monitoring)
7.Wi-Fi antennas.
8. Mobile solar trailer & mobile light tower.
Operations of manual telescopic mast
Manual Telescopic Masts dont need power supply or any other air compressor.It only need an attached hand crank. What's more, the antenna mast is very easy to operate, just 2 people can handle the mast pole very well. Our hand crank aluminum telescopic mast pole is ideal for PTZ CCTV Camera, Securiry Camera, Ham Radio, Antennas, Telecommunication Mobile Equipment, Emergency LED Lights etc. It is helpful for police dynamic forensic system, patrol and rescue system, fire emergency rescue system and so on.
Technical data
| Model | Height Extended | Contractile height | Number of Tubes | Maximum diameter | Wind power | Torsion precision | Max payload |
| OK-SD03SJ | 3M | 1200mm | 3(1060-200) | 80mm | Level 8/19m/SEC | ≤±2º | 30KG |
| OK-SD04SJ | 4M | 1300mm | 4(1140-220) | 80mm | Level 8/19m/SEC | ≤±2º | 30KG |
| OK-SD05SJ | 5M | 1500mm | 4(1340-220) | 80mm | Level 8/19m/SEC | ≤±2º | 25KG |
| OK-SD05BSJ | 5M | 1200mm | 6(970-220) | 106mm | Level 8/19m/SEC | ≤±2º | 20KG |
| OK-SD06SJ | 6M | 1400mm | 6(1160-230) | 106mm | Level 8/19m/SEC | ≤±2º | 20KG |
| OK-SD08SJ | 8M | 1700mm | 6(1460-240) | 106mm | Level 8/19m/SEC | ≤±2º | 20KG |
| OK-SD10SJ | 10M | 2100mm | 6(1860-270) | 106mm | Level 8/19m/SEC | ≤±2º | 15KG |
| OK-SD10BSJ | 10M | 1800mm | 8(1500-280) | 132mm | Level 8/19m/SEC | ≤±2º | 15KG |
| OK-SD12SJ | 12M | 2100mm | 8(1780-340) | 132mm | Level 8/19m/SEC | ≤±2º | 10KG |
| OK-SD15SJ | 15M | 2500mm | 8(2180-400) | 132mm | Level 8/19m/SEC | ≤±2º | 10KG |
| OK-SD16SJ | 16M | 2700MM | 8(2180-400) | 132mm | Level 8/19m/SEC | ≤±2º | 5kg |
| OK-SD18SJ | 18M | 2900mm | 8(2580-450) | 160mm | Level 8/19m/SEC | ≤±2º | 5KG |
| OK-SD20SJ | 20M | 3100mm | 8(2390-450) | 160mm | Level 8/19m/SEC | ≤±2º | 4KG |
